Created with Pixso. Galvanized Steel Channel Base Plate 6mm Thickness Q235 Material

Galvanized Steel Channel Base Plate 6mm Thickness Q235 Material

Наименование марки: HENG TONG
Номер модели: L-26F
МОК: 500
Подробная информация
Место происхождения:
Цзянсу, Китай
Материал:
Q235
Поверхностная обработка:
гальванизированный/нержавеющая сталь
Толщина:
6 мм
Центр между отверстиями:
47.6mm
Конец между промежутками отверстий:
20,6 мм
Ширина:
40 мм
Диаметр отверстия M10:
11 мм
Диаметр отверстия M12:
13 мм
Размеры отверстия:
11, 14, 19
Сталь:
Q235
Сплав тип:
Не сплав
Вторичный материал:
Не вторичные
Минимальное количество заказа:
500 шт
Тип упаковки:
Картон+поддон
Материал производства:
Низкоуглеродистая сталь
Выделить:

Galvanized steel channel base plate

,

6mm thick Q235 channel plate

,

Steel channel fittings with warranty

Описание продукта
Base Plate Standard Steel Frame and Connection Fitting for Channel
Product Description

High-quality connection fitting designed for channel applications, available in standard steel and stainless steel variants.

Key Specifications
  • 6mm thickness with 40mm width
  • Hole spacing: 47.6mm center-to-center, 20.6mm from end
  • Standard steel grade: Q235 (special specifications available)
  • Hole diameter: 11mm for M10 fittings, 13mm for M12 fittings
  • Manufactured from low-carbon steel with galvanized finish
  • Stainless steel version available upon request
Product Images

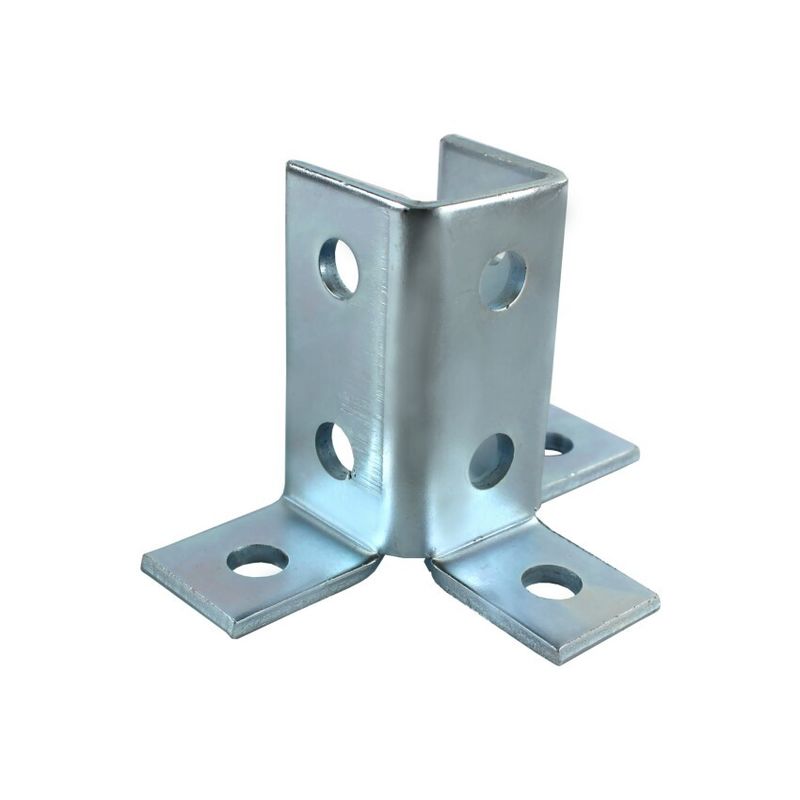

Galvanized Steel Channel Base Plate 6mm Thickness Q235 Material 0
